Current Location:Home - Solar Module -Double-glass Solar Module

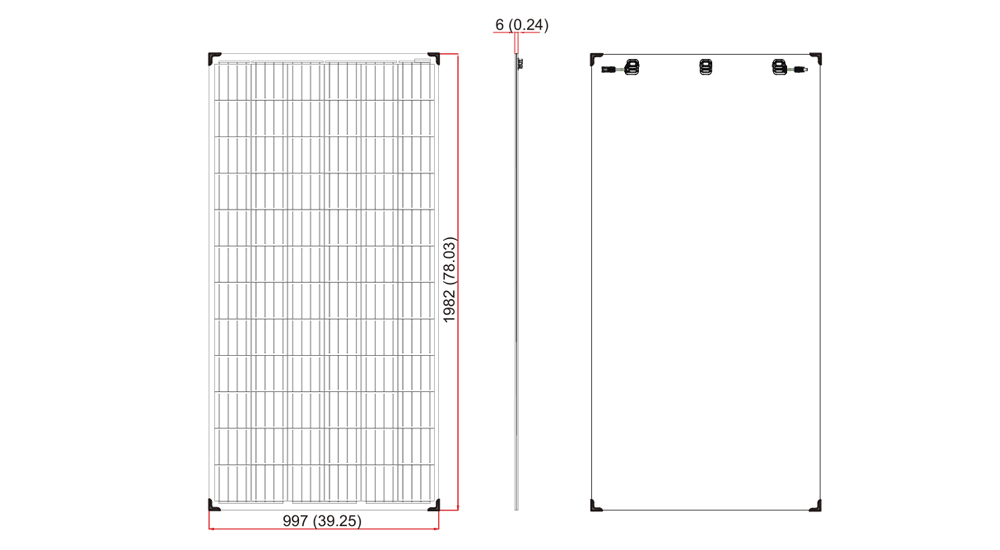

drawings




The packing way

ark 40'HQ Block/Joe
 30 Block/Joe
 660

Electrical performance parameter

The component models JY325P6-Da-5
 JY320P6-Da-5
 JY315P6-Da-5
The most powerful
 325W
 320W
 315W
The efficiency of the component 16.45% 16.19% 15.94%
Maximum operating voltage
 37.28V
 37.13V
 36.81V
Maximum operating current
 8.72A
 8.62A
 8.56A
The open circuit voltage
 46.31V
 45.94V
 45.75V
Short circuit current
 9.28A
 9.24A
 9.12A
Working temperature
 -40~+85℃
Output power tolerance 0 to +5W
Maximum system voltage
 1500V DC
NOCT 45±2℃
Maximum fusing current
 20A

The mechanical parameters

Battery model
 polysilicon  156.75  mm x 156.75  mm
Number of cells
 72 （6×12）
The component weight 28.1 kg (61.95 pounds)
Component size 1982×997×6  mm(78.03×39.25×0.24  inches )
Terminal block Protection gradeIP67
The connector Compatible withMC4
cable 4mm 2 ，250  mm

The temperature parameter

Temperature coefficient of short circuit current 0.04%/℃
Temperature coefficient of open circuit voltage -0.34%/℃
Maximum power temperature coefficient -0.41%/℃
*All rights reserved. Specifications are subject to change without prior notice。

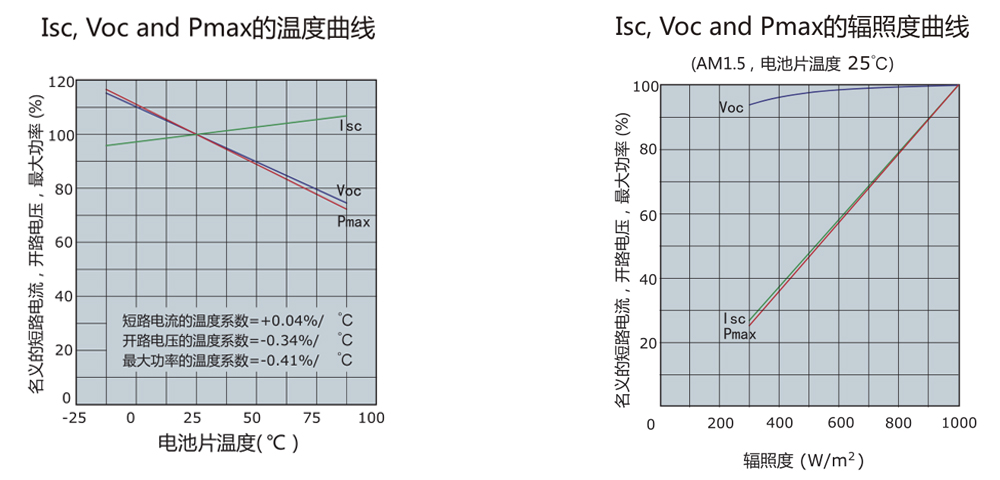

Electrical performance curve
